Description
|

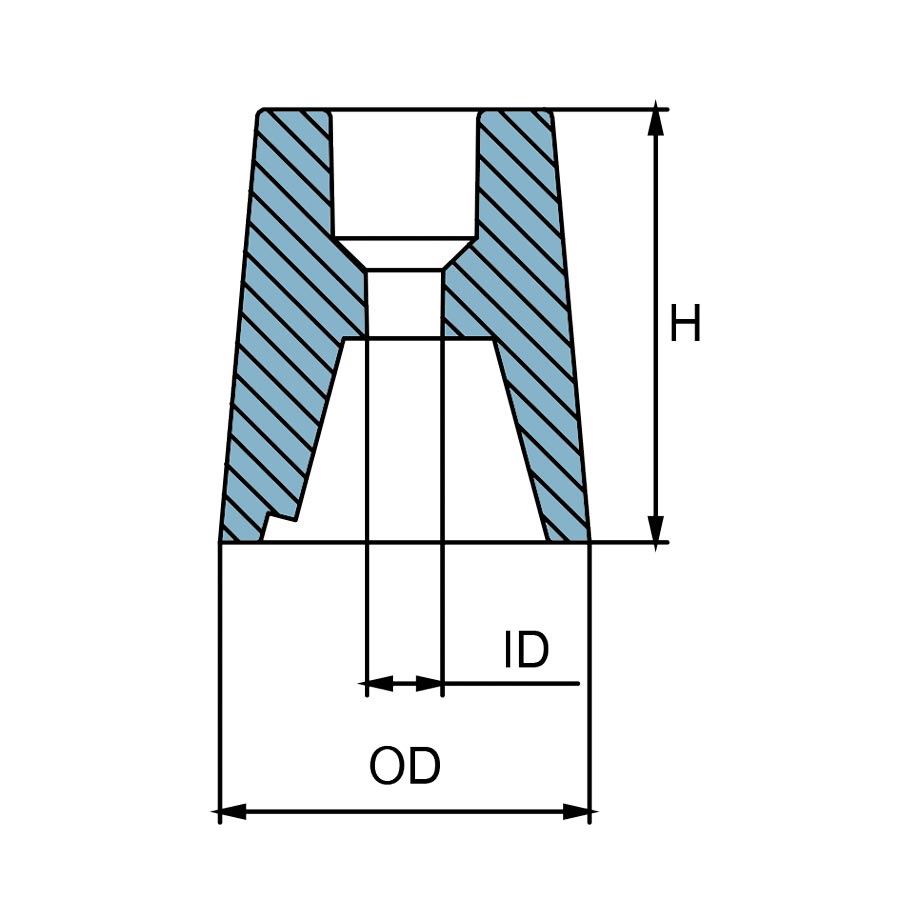

PID |
LB |
KG |
|
OD |
ID |
H |
THD |
Fastener |
||
|
Al |
CMLAEC3250EUA |
0.45 |
0.21 |
mm |
33 |
7 |
39 |
M16 x 1.5 |
M6 x16SS |
|
|
Mg |
CMLAEC3250EUM |
0.41 |
0.19 |
|||||||
|
in |
1.28 |
0.27 |
1.54 |
|||||||
|
Zn |
CMLAEC3250EUZ |
0.61 |
0.28 |
|||||||
|
Al |
CMLAEC3300EUA |
0.87 |
0.40 |
mm |
44 |
9 |
52 |
M20 x 1.5 |
M8 x25SS |
|
|
Mg |
CMLAEC3300EUM |
0.77 |
0.35 |
|||||||
|
in |
1.73 |
0.35 |
2.05 |
|||||||
|
Zn |
CMLAEC3300EUZ |
1.31 |
0.59 |
|||||||
|
Al |
CMLAEC3500EUA |
1.05 |
0.48 |
mm |
44 |
9 |
52 |
M24 x 2 |
M8 x25SS |
|
|
Mg |
CMLAEC3500EUM |
0.96 |
0.44 |
|||||||
|
in |
1.73 |
0.35 |
2.05 |
|||||||
|
Zn |
CMLAEC3500EUZ |
1.41 |
0.64 |
|||||||
|
Al |
CMLAEC4000EUA |
1.54 |
0.70 |
mm |
50 |
9 |
65 |
M24 x 2 |
M8 x25SS |
|
|
Mg |
CMLAEC4000EUM |
1.39 |
0.63 |
|||||||
|
in |
1.97 |
0.35 |
2.56 |
|||||||
|
Zn |
CMLAEC4000EUZ |
2.17 |
0.99 |
|||||||
|
Mg |
CMLAEC4500EUM |
1.995 |
0.905 |
mm |
50 |
10 |
74 |
M33x2 |
M10 x 25SS |
|
|
Zn |
CMLAEC4500EUZ |
3.185 |
1.445 |
in |
2.32 |
0.39 |
2.91 |
M33x2 |
M10 x 25SS |
|
|
Al |
CMLAEC5000A |
3.589 |
1.628 |
mm |
71 |
— |
113 |
M36 X2 |
M10 X30 |
|
|
Mg |
CMLAEC5000M |
3.214 |
1.458 |
|||||||
|
in |
2.80 |
— |
4.45 |
|||||||
|
Zn |
CMLAEC5000 |
5.330 |
2.418 |
|||||||
|
Al |
CMLAEC5500A |
4.140 |
1.878 |
mm |
72 |
— |
127 |
M40 X3 |
M10 X30 |
|
|
Mg |
CMLAEC5500M |
3.765 |
1.708 |
|||||||
|
in |
2.80 |
— |
5.00 |
|||||||
|
Zn |
CMLAEC5500 |
5.573 |
2.528 |
|||||||
|
Al |
CMLAEC6000A |
6.036 |
2.738 |
mm |
81 |
— |
139 |
M45 X3 |
M10 X30 |
|
|
Mg |
CMLAEC6000M |
5.463 |
2.47 |
|||||||
|
in |
3.19 |
— |
5.47 |
|||||||
|
Zn |
CMLAEC6000 |
8.263 |
3.748 |
|||||||
|
Al |
CMLAEC10000A |
9.645 |
4.375 |
mm |
98 |
— |
98 |
M50 X3 |
M10 X30 |
|
|
Mg |
CMLAEC10000M |
8.895 |
4.035 |
|||||||
|
in |
3.86 |
— |
3.86 |
|||||||
|
Zn |
CMLAEC10000 |
12.934 |
5.867 |
|||||||
