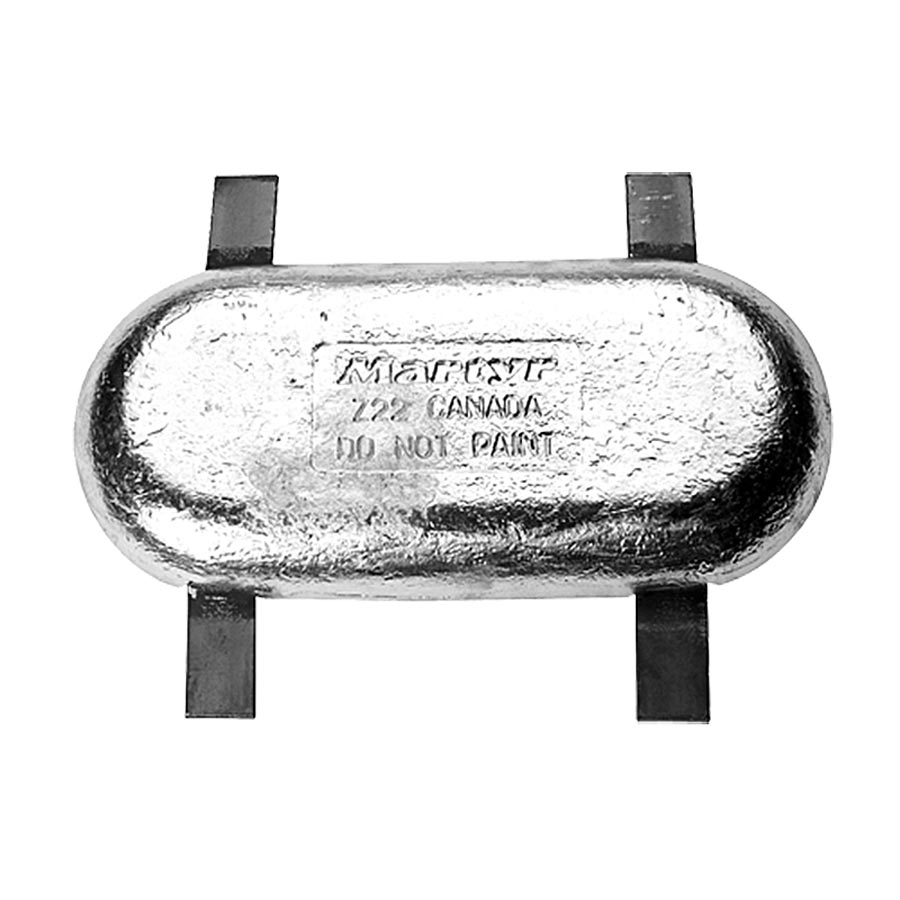

CMZ22S anode

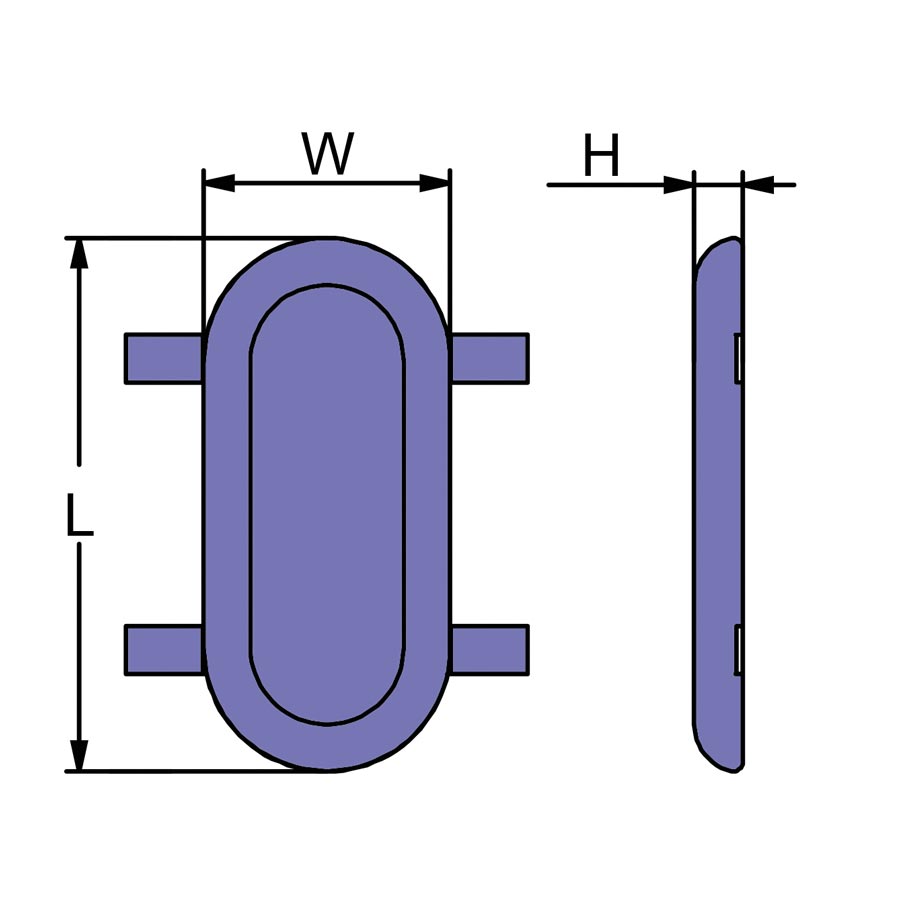

Technical drawing of CMZ22 anode

Streamlined Hull Anodes CMZ22 (Weld-on)

Weld-on

Bolt holes can be added on straps as required

Notes:

All weights are nominal gross weight.
Inserts and straps are available in either Aluminum or steel.
Bolt size is suggested.
Contact us for special configuration requirements.
Detailed drawings are available. Protective backing available for better performance. Please check for details when ordering.

Categories: Commercial, Hull Anodes, Streamlined Anodes Tags: AZ22, AZ22A, Commercial, Streamlined, Z22, Z22A

Description

Description

PID		LB	KG		L	W	H
Al	CMZ22SA	11.400	5.171	mm	356	165	33
Mg	CMZ22SM	6.938	3.147
Zn	CMZ22SZ	24.200	10.977
Al	CMZ22AA	10.600	4.808	in	14	6.5	1.3
Mg	CMZ22AM	6.138	2.784
Zn	CMZ22AZ	23.400	10.614
Mg	CMZ22GM	6.938	3.147
