CMZ24BS anode

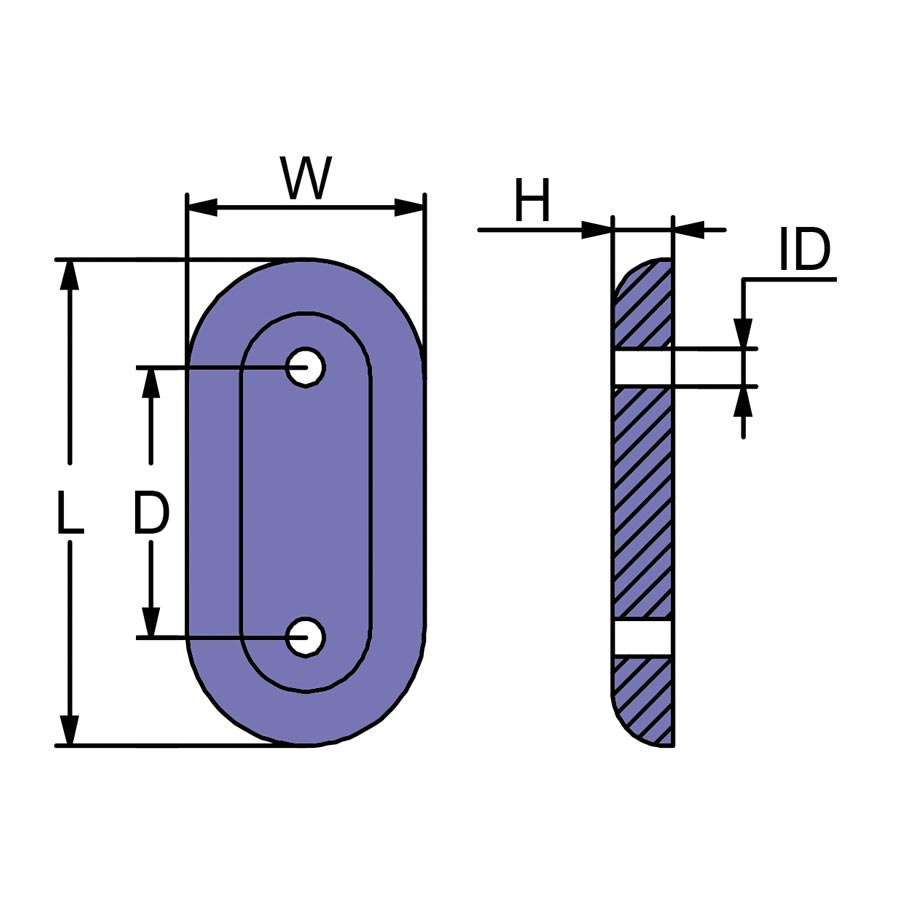

Technical drawings of CMZ24BS

Hull Anodes CMZ24BS

Bolt-on

Bolt holes can be added on straps as required

Notes:

  1. All weights are nominal gross weight.
  2. Inserts and straps are available in either Aluminum or steel.
  3. Bolt size is suggested.
  4. Contact us for special configuration requirements.
  5. Detailed drawings are available. Protective backing available for better performance. Please check for details when ordering.
Categories: , Tags: ,

Description

PID

LB

KG



L

W

H

D

ID

Al

CMZ24BSA

8.40

3.810

mm

356

159

1.13

127

13

Mg

CMZ24BSM

5.10

2.313

in

14

6.25

0.044

5

0.5

Zn

CMZ24BSZ

21.00

9.525
